Chapter 15
Bringing It All Together: The StockQuote Server
Back in Chapter 8 I used the example of a stock quoting server to demonstrate the advantages of component design and the issues involved in choosing between ActiveX EXE servers, DLL servers, and other approaches. I then promised to show you how to create one.
The last six chapters have been spent discussing many of the issues relating to implementing ActiveX components-the issues we will now demonstrate in this chapter.
Top-Down Design
There are a number of design methodologies programmers use, and I wouldn't even begin to suggest which is the best. But my personal favorite is to design from the top down and code from the bottom up. This means that you start by figuring out at the highest level what your program will do, then determining what kind of modules, components, and functions are needed to implement that level. Then you step down again and figure out what kind of code is needed to implement those modules and so on. When it's time to actually write code, you work in the reverse direction, coding the lowest level modules and components first, then working your way back up.
High-Level Design Review
Our goal is to come up with an ActiveX EXE server that can retrieve stock quotations. The reasons behind choosing an EXE server were discussed in depth in Chapter 8 The key reasons were:
- An EXE server allows us to retrieve the quote in a separate thread so the requesting application is not blocked during the retrieval process.
- An EXE server that exposes multiple objects allows multiple clients to share the same communications link.
In principle, we want any client application to be able to request a stock quotation and receive a notification when the response is received. It should be possible for an application to request multiple quotations at once. The server must support multiple clients.
These requirements influence additional design choices. For example, there are two notification mechanisms available: OLE events and OLE callbacks. Which one should we support? To answer this you must first decide whether a single StockQuote object can handle multiple requests or only one at a time. If it can handle multiple requests, the OLE event mechanism may be reasonable. However, in this case it seemed preferable to have the client use multiple StockQuote objects to handle multiple requests. This suggests that the OLE callback mechanism is a better choice.
Should the server be multithreading? In this case multithreading is clearly not appropriate. We want the server to be able to queue requests from the different clients and handle them in turn. This means that the objects must be able to communicate with each other, most likely through shared data structures in the global module. The apartment model of multithreading used by Visual Basic 5.0 prevents this type of sharing. Not only that, but since we are bound by a single communications link, multithreading would have no benefit; we only need a single thread. In fact, it would probably reduce performance due to the threading overhead.
So the higher-level design is beginning to take shape. You have a StockQuote object that is creatable by any application. It will have a method that is called to start a quote retrieval operation. This method will take a reference to a Callback object to use for the notification. It might also take the ticker symbol of the stock to retrieve. The server will have a module in which it will keep track of queued requests. As data arrives it will use the Callback object to notify the client application that the information has been retrieved.
We can envision the following design for the StockQuote object:
- GetQuote (symbol, callback): A method to start the retrieval process.
- State: A read-only property that lets you check the retrieval status.
- Symbol: A read-only property that contains the stock symbol. It is set by the GetQuote method.
- LastPrice: A read-only property containing the last price or net asset value of the security.
- PriorClose: A read-only property containing the prior close price of the security.
- Change: A read-only property containing today's change in price.
- QuoteTime: A read-only property containing the time of the quote.
- High: A read-only property containing today's high price.
- Low: A read-only property containing today's low price.
We also need to define a Callback method, the method the Callback object must have to receive the notification:
- QuoteUpdate(Stockquote): A Callback method that passes a reference to the Stockquote object itself as a parameter
- CancelNotification: A method that allows a client to cancel a notification-say, if it wants to close
Should the price properties shown above be in the form of strings (as they are when retrieved) or should they be converted to currency values? In this object they are left as strings, because stocks are traditionally displayed as an integer followed by the fractional price in eighths, such as 1/2 or 5/8, so this makes display easier. However, it would be helpful to have some utility functions to convert to the currency type to make it easier to do numeric comparisons. The StockQuote object seems a good place to place these functions:
- QuoteToCurrency(quote as string): A function that takes a stock price in fractional string format and returns the numeric value as a currency data type
- CurrencyToQuote(quote as currency): A function that takes a stock price as currency and in fractional string format and returns the numeric value as a currency data type
Low Level Design Review
You may have noticed that one small detail has been left out of the discussion so far. You may have been wondering exactly where do we obtain the stock quotes? For information of this type we naturally turn to the source of all known wisdom, the Internet. OK, maybe the Internet is not the source of all wisdom, but there are places where you can easily obtain delayed quotes, if you know how to submit a request and read an HTML page.
There are many ways to access the Internet from Visual Basic. For this application I chose one that I could be confident every reader would have access to, the Internet Transfer Control included with Visual Basic 5.0 Professional and Enterprise. This control allows your VB program to access the Internet if you have an Internet connection and Winsock set up for TCP/IP. Now if you don't have these, I'm afraid you'll have to obtain them in order to use this component. (Discussing how to obtain Internet access and configure your system properly is way beyond the scope of this book. However, during my last to a local bookstore, there seemed to be several thousand other books available to help you through the process.)
We'll talk about the implementation shortly. Knowing that we'll be using an Internet control is the final piece of the puzzle for defining the architecture of the server.

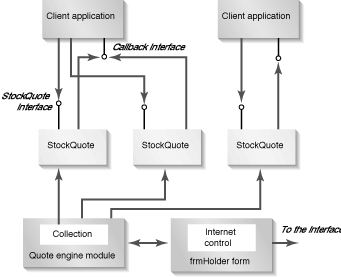

Figure 15.1 illustrates the overall architecture of the StockQuote server. When the client requests a quote, the StockQuote object calls functions in the common QuoteEngine module. The module adds a reference to the object into a collection that represents a queue of objects that have requested quotations. When the first request arrives, the quote engine invokes a method on a utility form, which in turn sends an HTML request through the Internet control. When the transfer is complete (or an error occurs), an event is triggered in the control. The control then lets the QuoteEngine know that a quote has arrived and passes the HTML information to the StockQuote object. The object parses the HTML code to extract the quote information, notifies the client, and presto! Success!
Figure 15.1 : Architecture of the StockQuote server.
Sounds simple enough. And if you are an experienced Internet programmer who has done this sort of thing before, it is simple. So you might just want to skip the rest of this chapter. However, I know that for many of you this may seem almost like black magic. So let's back up and take this step by step so you can see exactly how it all works.
Implementation
We've done the top-down design. Now it's time to do the coding, from the bottom up.
Everything You Need to Know about HTML
Well, perhaps not everything you need to know, but certainly all you need to know for this particular application.
The StockQuote object is currently configured to access quotes off of either Charles Schwab (www.schwab.com) or Yahoo (www.yahoo.com). There are a myriad of other quote services available through the Internet that you can add to the server if you wish. While my choice of these two services is not intended to recommend them over any others. I do tend to use Yahoo first when searching the Internet, and I have a personal account with Schwab, so I am glad to be able to mention them in this context. From my perspective, the fact that it took me less than a day to obtain their permissions to base this demonstration on their sites says something about their organizations.
I want to give you a strong caveat here. Nothing prevents Schwab or Yahoo from changing the format of their Web pages at any time. Doing so will probably cause this component to fail and cause some of the description in this section to be incorrect. If this happens, you will be able to find updated information on our Web site at www.desaware.com.
To understand how this Internet retrieval is accomplished, you'll need to know a little bit about HTML and how the World Wide Web works.
When you tell a browser (or Internet custom control) that you want a specific Web page, several things happen. First, the control uses a Domain Name Service (DNS) to find the unique 64-bit address of the computer that contains the page. This is the Internet Protocol (IP) address. Domains are set in a hierarchy. Thus www.desaware.com is, first, part of the com domain, the domain that contains all commercial sites. Next, it is part of a domain named desaware.
Once the control has this IP address, it opens a communications link called a socket to the site. The site must be running a server program that "listens" for incoming requests. This program is called a Web server.
The control sends a string containing a request to the site. The site then responds by returning the requested data. In the http protocol used for the World Wide Web, the returned data can be text or binary. For our purposes we will only be concerned with text.
When you request a page from a Web site, you receive back a text string in a format called HyperText Markup Language (HTML). This string is broken up into two types of elements:
- Tags-Surrounded by angle brackets < >, a tag contains formatting information that provides some sort of instruction to the browser.
- Data-Text to display on the page.
Any time your browser retrieves a very complex page that contains images and links and animations, your browser actually makes multiple requests. The initial page contains tags that instruct the browser where to find the other objects that belong on the page. If a tag specifies that an image must be loaded, the browser must perform a second request to retrieve the image based on the location specified in the tag. Listing 15.1 shows what a portion of a typical Schwab stock quote page looks like in HTML.
Listing 15.1: Sample Quotation HTML Page
<HTML>
<BODY BGCOLOR="#FFFFFF">
<CENTER>
<FORM METHOD="POST" ACTION="/fq/schwab/quote">
<TABLE BORDER=2 CELLPADDING=2 WIDTH="100%"><TR><TD VALIGN=top>Select
quote or chart:<BR>
<INPUT TYPE="radio" NAME="request" VALUE="Delayed quote"
CHECKED>Delayed quote<BR>
<INPUT TYPE="radio" NAME="request" VALUE="Intraday chart" >Intraday
chart<BR>
<INPUT TYPE="radio" NAME="request" VALUE="Daily chart" >Daily chart<BR>
<INPUT TYPE="radio" NAME="request" VALUE="Weekly chart" >Weekly
chart</TD>
<TD VALIGN=top>Enter the security symbol*, or <A
HREF="/fq/schwab/ticker">search for symbol</A>:<BR>
<INPUT NAME="symbols" SIZE=25 VALUE="MSFT"><BR>
<FONT SIZE=-1>*<B>Multiple symbols</B> may be entered for <B>quotes
only</B>.
Separate symbols with spaces.</FONT><BR><BR>
<INPUT TYPE="image" VALUE="Submit" BORDER=0
SRC="/graphics/schwab/submit.gif">
</TD></TR></TABLE>
</FORM>
<A NAME="QuoteSummaryTableAnchor"><B>Quote Summary</B></A><BR>
For more quote details, click on symbol.<BR>
Quote times are Eastern Standard Time.<BR>
<TABLE BORDER=2 CELLPADDING=2 WIDTH="100%">
<TR><TH ALIGN=left>Symbol</TH><TH>Security<BR>Type</TH>
<TH>Last<BR>Trade</TH><TH>Net<BR>Change</TH><TH>High</TH>
<TH>Low</TH><TH>Trade<BR>Time</TH>
<TH>Intraday<BR>Chart</TH></TR>
<TR ALIGN=center><TH ALIGN=left><A HREF="#MSFT">MSFT</A></TH>
<TD>Stock</TD>
<TD>97 <SUP>3</SUP>/<SUB>8</SUB></TD><TD><FONT COLOR="#008800">+2
<SUP>3</SUP>/<SUB>8</SUB></FONT></TD><TD>98
<SUP>1</SUP>/<SUB>2</SUB></TD><TD>94
<SUP>5</SUP>/<SUB>8</SUB></TD><TD>16:17</TD>
<TD VALIGN=center><FORM METHOD="POST" ACTION="/fq/schwab/quote">
<INPUT TYPE="hidden" NAME="request" VALUE="Intraday chart">
<INPUT TYPE="hidden" NAME="symbols" VALUE="NASDAQ:MSFT">
<INPUT TYPE="image" VALUE="Submit" BORDER=0
src="/graphics/schwab/submit.gif"></TD></TR></FORM>
</TABLE><P>
<A NAME="MSFT"></A><TABLE BORDER=2 CELLPADDING=2>
<TR><TH>MICROSOFT CORP</TH>
<TH><TABLE BORDER=0 CELLPADDING=2><TR><TH
ALIGN=right>Symbol:</TH><TD>MSFT</TD></TR>
<TR><TH ALIGN=right>Security Type:</TH><TD>Stock</TD>
</TR></TABLE></TH></TR>
<TD><TABLE BORDER=0 CELLPADDING=2>
<TR><TH ALIGN=right>Last<BR>Trade:</TH><TD>97
<SUP>3</SUP>/<SUB>8</SUB></TD>
<TH ALIGN=right>Net<BR>Change:</TH><TD><!-- Not Yet+2
<SUP>3</SUP>/<SUB>8</SUB>--></TD></TR>
<TR><TH ALIGN=right>Bid:</TH><TD>97 <SUP>3</SUP>/<SUB>8</SUB></TD>
<TH ALIGN=right>Ask:</TH><TD>97 <SUP>1</SUP>/<SUB>2</SUB></TD></TR>
<TR><TH ALIGN=right>Day High:</TH><TD>98 <SUP>1</SUP>/<SUB>2</SUB></TD>
<TH ALIGN=right>Day Low:</TH><TD>94 <SUP>5</SUP>/<SUB>8</SUB></TD></TR>
<TR><TH ALIGN=right>Volume:</TH><TD>16,157,600</TD>
<TH ALIGN=right>Last Trade<BR>Tick:</TH><TD></TD></TR>
<TR><TH ALIGN=right>Last Trade<BR>Date:</TH><TD>01/22/97</TD>
<TH ALIGN=right>Last Trade<BR>Time:</TH><TD>16:17</TD></TR>
<TR><TH ALIGN=right>52 Week<BR>High:</TH><TD>95.06</TD>
<TH ALIGN=right>52 Week<BR>Low:</TH><TD>44.50</TD></TR>
<TR><TH ALIGN=right>EPS:</TH><TD>1.71</TD>
<TH ALIGN=right>EPS Date:</TH><TD><FONT SIZE=-1>Coming
Soon</FONT></TD></TR>
<TR><TH ALIGN=right>P/E Ratio:</TH><TD>45.0</TD>
<TH ALIGN=right>Current<BR>Yield:</TH><TD><FONT SIZE=-1>Coming
Soon</FONT></TD></TR>
</TABLE></TD><TD VALIGN=top><TABLE BORDER=0 CELLPADDING=2>
<TR VALIGN=top>
<TH COLSPAN=2>Additional<BR>Information<BR><BR><BR></TH></TR>
<TR><TH ALIGN=right>Dividend:</TH><TD>0</TD></TR>
<TR><TH ALIGN=right>Option Open<BR>Interest:</TH><BR><TD>N/A</TD></TR>
<TR><TH ALIGN=right>Dividend<BR>Pay Date:</TH><TD><FONT SIZE=-1>Coming
Soon</FONT></TD></TR>
</TABLE></TD></TR></TABLE>
<CENTER><A HREF="#QuoteSummaryTableAnchor">
<IMG SRC="/graphics/schwab/schwab.return.gif" ALT="[Quote Summary]"
BORDER=0></A>
</CENTER><P>
<CENTER><FONT SIZE=-1>Security quotes are at least 15 minutes
delayed</FONT></CENTER><BR><UL><LI>Customer support, quote definitions,
and a price
chart legend are available in <NOBR><A HREF="schwab.help.html">Quotes
and Charts Help</A>.</NOBR></LI></UL>
<P>
<TABLE BORDER=0><TR><TD>
<A HREF="http://www.quote.com/" TARGET=_top><IMG
SRC="/graphics/spryquotecom.gif"
BORDER=0 ALT="Provided by Quote.com" WIDTH=165 HEIGHT=70></A>
</TD><TD>
Market data is provided by Quote.com, Inc. By using this
service, you
agree to the terms of the
<A _
HREF="http://www.schwab.com/SchwabNOW/SNLibrary/SNLib041/SN041Agreement.html">User Agreement</A>.
</TD></TR></TABLE>
</center>
</BODY>
</HTML>If you look closely, you will see that most of the information we need for the StockQuote object can be found in this listing. You can also see examples of some of the tags. For example, here is a tag that retrieves an image.
<A HREF="http://www.quote.com/" TARGET=_top><IMG SRC="/graphics/spryquotecom.gif"
The image is not part of the page itself; a browser has to make a separate request to the specified location on the site in order to retrieve it. We'll look at this listing again later when it comes time to extract the information from the page.
The question to ask now is this: how do you request a quote for a particular stock? To do this, we have to take a look at part of a different page where you place the request:
<FORM METHOD="POST" ACTION="/fq/schwab/quote"> <TABLE BORDER=2 CELLPADDING=2 WIDTH="100%"><TR><TD VALIGN=top>Select quote or chart:<BR> <INPUT TYPE="radio" NAME="request" VALUE="Delayed quote" CHECKED>Delayed quote<BR> <INPUT TYPE="radio" NAME="request" VALUE="Intraday chart" >Intraday chart<BR> <INPUT TYPE="radio" NAME="request" VALUE="Daily chart" >Daily chart<BR> <INPUT TYPE="radio" NAME="request" VALUE="Weekly chart" >Weekly chart</TD> <TD VALIGN=top>Enter the security symbol*, or <A HREF="/fq/schwab/ticker">search for symbol</A>:<BR> <INPUT NAME="symbols" SIZE=25 VALUE="MSFT"><BR> <FONT SIZE=-1>*<B>Multiple symbols</B> may be entered for <B>quotes only</B>. Separate symbols with spaces.</FONT><BR><BR> <INPUT TYPE="image" VALUE="Submit" BORDER=0 SRC="/graphics/schwab/submit.gif"> </TD></TR></TABLE> </FORM>
The three tags that do the work are the form method tag and two input type tags. The line
<INPUT NAME="symbols" SIZE=25 VALUE="MSFT"><BR>
places a text box named "symbols" on the Web page. The current value (from a previous search) is MSFT in this particular case. The tag
<INPUT TYPE="image" VALUE="Submit" BORDER=0 SRC="/graphics/schwab/submit.gif">
places a button named "submit" on the page. The button appearance is defined by a separate graphic /graphics/schwab/submit.gif. The tag
<FORM METHOD="POST" ACTION="/fq/schwab/quote">
tells the browser how to submit the information when the submit button is clicked. The page address you will be requesting is http://schwab.quote.com/fq/schwab/quote, where schwab.quote.com is the site where this page can be found.
The server receives the rest of the information in a command line it processes to generate the response page that contains the stock quote. The command line created by a Web form consists of a question mark followed by all of the various form fields (such as the text box) with their values separated by ampersands. The commands take the generic format:
http://webaddress.domain/Action?firstfield=firstvalue&secondfield=secondvalue&
In this case, the request to retrieve Microsoft's stock price was
http://schwab.quote.com/fq/schwab/quote?symbols=MSFT
The radio button field can be ignored in this case because the default value (Delayed quote) is acceptable.
You see, you don't need to know what all of the different HTML tags mean to retrieve information from the Internet. I don't know what all of these tags mean. We will be looking at HTML in Part 3 as well, where we look at how Web pages host ActiveX controls and documents. But for now, we're ready to look at some code.
Talking to the Net
The Internet control is actually quite easy to use. You start by setting the protocol property to 4 - icHTTP. This control is placed on a form named frmHolder, which will be an invisible form belonging to the EXE server.
The form has a public property called StartQuote, which is used to start the quote retrieval process. This simple routine follows:
Public Sub StartQuote(symbol As String)
Dim q$
Select Case QuoteSource
Case sqschwab
q$ = "http://schwab.quote.com/fq/schwab/quote" & "?symbols=" & _
Trim$(symbol)
Inet1.Execute q$, "GET"
Case sqyahoo
q$ = "http://quote.yahoo.com/quotes?SYMBOLS=" & Trim$(symbol)_
& "&detailed=t"
Inet1.Execute q$, "GET"
End Select
End Sub
As you can see, all we do is build the request string that the server expects to see to request a stock quote. We then use the Execute method of the control to send the request to the server.
The control does all of the work of resolving the domain and retrieving the page. You can monitor its progress by looking at the control's StateChanged event, as shown in Listing 15.2.
Listing 15.2: The Inet1_StateChanged and Form Terminate Events
Private Sub Inet1_StateChanged(ByVal State As Integer)
Dim res$
Dim ChunkVar As Variant
Dim bDone As Boolean
Dim st$
Select Case State
Case icNone
Case icResolvingHost 'The control is looking up the IP address _
of the specified host computer.
st$ = "Resolving host"
Case icHostResolved 'The control successfully found the _
IP address of the specified host computer.
st$ = "Host resolved"
Case icConnecting 'The control is connecting to the host _
computer.
st$ = "Connecting"
Case icConnected 'The control successfully connected to _
the host computer.
st$ = "Connected"
Case icRequesting 'The control is sending a request to _
the host computer.
st$ = "Requesting"
Case icRequestSent 'The control successfully sent the _
request.
st$ = "Request sent"
Case icReceivingResponse 'The control is receiving a response _
from the host computer.
st$ = "Receiving"
Case icResponseReceived 'The control successfully received a _
response from the host computer.
st$ = "Response received"
DoEvents
Case icDisconnecting 'The control is disconnecting from the _
host computer.
st$ = "Disconnecting"
Case icDisconnected 'The control successfully disconnected _
from the host computer.
st$ = "Disconnected"
Case icError 'An error occurred in communicating _
with the host computer.
st$ = "Error"
EndQuote ""
Case icResponseCompleted 'The request has completed and all _
data has been retrieved
st$ = "Response complete"
Do
ChunkVar = Inet1.GetChunk(1024, icString)
If Len(ChunkVar) > 0 Then
DoEvents
res = res & ChunkVar
Else
bDone = True
End If
Loop While Not bDone
EndQuote res
End Select
Debug.Print st$
End Sub
Private Sub Form_Terminate()
DoEvents ' Required due to MSInet bug
End Sub
As you can see, the control provides detailed information on what it is doing at any given time. The sample uses the debug.print statement to let you monitor and see what is happening.
For the purposes of this component, only two states are of interest. The icError state indicates that an error occurred. The most common error you will run into will be a timeout, due to connection or server problems (on the network). The icResponseCompleted state informs the program that the data has been retrieved. The control's GetChunk method returns a string of a specified length. We loop through until the entire page has been placed into a string.
The final operation in either state is to call the EndQuote function, which is part of the QuoteEngine module. This tells the engine that a response has been received.
You may be wondering why a DoEvents statement must be placed after each GetChunk call, after the ResponseReceived state, and in the Termination event for the form, especially since, as those of you who have followed my work over the years know, I despise the DoEvents statement. In most cases it is a indication of a flawed design.
In this case, the DoEvents statements are an indication of a bug in the Microsoft Internet control. They solve a known synchronization problem with the control. This bug is documented in the Visual Basic 5.0 Readme file.
I confess that I sympathize with Microsoft's plight. As a software developer who knows full well that any non-trivial program contains bugs (and any program with more than ten lines is, by definition, not trivial), I realize that if they tried to fix every known bug in VB5, it would never ship. But as a developer, I don't have to like it.
The Quote Engine
The code that manages the various StockQuote objects and communicates with the network by way of the frmHolder form is kept in a standard module called the Quote Engine. With all of the focus on object-oriented programming, you would think that a standard module is the last thing you would want to use in a component. Usually this would be correct. But you see, from the perspective of this component the QuoteEngine module itself represents an object, even though it is obviously not a COM object. Because the variables in a standard module are potentially global to the entire application, it presents the ideal way to share information or arbitrate between the objects in the application. The quote engine is an excellent demonstration of where you would want to use a standard module.
Listing 15.3 shows the QuoteEngine module. It uses several techniques you have seen earlier. For example: The Sub Main routine determines whether the component was started as a stand-alone program. If it was, a second form, frmQuote.frm, is shown. This form contains a text box that lets you request individual quotes and provides an easy way to test the component without using a second application. It is not unreasonable to use this technique to test ActiveX EXE servers in general; you can always remove the form before shipping the component or just disable it so it will never be shown. If the server was started as a component, we set the App.TaskVisible property to False so that it won't show up in the task list.
Listing 15.3: The QuoteEngine Module (modQuote.bas)
' dwQuote QuoteEngine
' Desaware ActiveX Gallimaufry
' Copyright (c) 1997 by Desaware Inc. All Rights Reserved
Option Explicit
' Enum that indicates which service to use
Public Enum QuoteSourceType
sqschwab = 0 ' Charles Schwab & Co.
sqyahoo = 1 ' Yahoo
End Enum
Public QuoteSource As QuoteSourceType ' Service in use
' This is a collection of quotes that need to be filled
' Each one is filled in turn
' All objects work with this list
Private QuotesPending As New Collection
' Set to True when a quote is in progress
Private QuotationInProgress As Boolean
' Initialization routine
Sub Main()
' For now, hardcode the quote source
QuoteSource = sqyahoo
' On standalone operation, bring up quotation form
If App.StartMode = vbSModeStandalone Then
frmQuote.Show
Else
' Don't show the task in the task bar
App.TaskVisible = False
End If
End Sub
' Called by StockQuote object to start a quotation
' if one is not yet in progress
Public Sub StartQuote(Optional obj As StockQuote)
Dim sq As StockQuote
' Add it to the list
If Not obj Is Nothing Then
QuotesPending.Add obj
End If
If (Not QuotationInProgress) And QuotesPending.Count > 0 Then
QuotationInProgress = True
Set sq = QuotesPending.item(1)
frmHolder.StartQuote sq.symbol ' Start a quotation now
End If
End Sub
' Called when quotation is done
' htmlstring is String containing the downloaded html
' html is "" if EndQuote is due to an error
Public Sub EndQuote(htmlstring As String)
Dim htmlcol As New dwHTMLcollection
Dim sq As StockQuote
' Quotation is done
QuotationInProgress = False
' Remove the first item in the collection
' (it's the one that's been in progress
Set sq = QuotesPending(1)
QuotesPending.Remove 1
' Don't keep objects hanging around unneeded
If QuotesPending.Count = 0 Then
Set QuotesPending = Nothing
Unload frmHolder
End If
If Len(htmlstring) = 0 Then
sq.ReportQuote Nothing, sqError
Else
htmlcol.LoadFromString htmlstring
sq.ReportQuote htmlcol, sqIdle
End If
' Start the next quotation
StartQuote
End Sub
The module has two private variables. Private in this case means they can only be accessed by function in this module. Even though the standard module is shared by all of the other modules in the application, there is no reason why we shouldn't use object-oriented techniques to hide any variables and functions that are only used within the module. (And there is every reason why we should.) The QuotesPending collection contains references to all StockQuote objects that have requests pending. The QuotationInProgress Boolean keeps track of whether a request is currently in progress.
Why use a standard collection to hold the pending StockQuote objects? Why not create a custom collection or an array? Because doing so would be a waste of time, effort, and code. The primary reason for creating a custom collection is to create more robust code and to minimize the chances of clients of the collection adding an invalid object or performing an illegal manipulation on the collection. But in this case the only client for the collection is the module itself. In this case it is far easier to make sure that the module code is correct than it would be to create and test a custom collection.
The extra object involved in a custom collection is a waste of code and resources as well. As for using an array, the slight performance improvement in using an array is negligible compared to the relatively long time each quote request takes.
The module has a public variable called QuoteSource to allow you to choose the quotation service to use. This was actually a preliminary implementation of this functionality added for testing purposes. It will probably be moved to the StockQuote object for the final shipping version of this component.
The QuoteEngine module has only two public functions. The StartQuote function is called by the StockQuote objects to tell the module that it wants to make a request. The StockQuote object passes a reference to itself (Me) as a parameter. The object reference is then added to the QuotesPending collection. If a request is currently in progress, the function returns. Otherwise it checks to see if any requests are pending. If it finds one, it starts a request.
The function actually serves a dual purpose, because if you pass Nothing to it as a parameter, the function starts any pending requests if possible. This allows it to be used by the EndQuote function to start the next request. The EndQuote function is called only by the frmHolder form when a request is complete.
The first thing it does is remove from the QuotesPending collection the StockQuote object that placed the request, holding a reference to it so it won't be deleted. If no more quotes are pending, it unloads the form. This is necessary to make sure that the server terminates correctly. (Remember, an EXE server cannot be terminated unless all of its forms are unloaded.)
The EndQuote function then calls the ReportQuote method of the StockQuote object that placed the request. This method takes two parameters, a dwHTMLcollection object, which will be described in the next section, and a flag indicating whether the request ended in success or in error. The dwHTMLcollection object is initialized using the retrieved Web page via the LoadFromString method.
Finally, the EndQuote function starts the next request. You can see this is really quite an elegant solution to obtaining stock quotes. The EXE server runs in its own thread; thus, it is in the background for clients using the server. The actual data retrieval across the Internet runs in the background as far as the server is concerned, leaving the server open at all times to provide additional StockQuote objects and fill requests!
Parsing HTML
You've seen that HTML pages consist of a string of tag data and content data. How do we extract the information we need from the page? The process of extracting tokens of information from a string is called parsing, and that is what we need to do in this case.
If this was likely to be the only time you ever wanted to parse an HTML page, then you would probably just use the Instr$ function to search for strings and extract the data. But in my case, I knew I would probably want to do this again, so I wanted to come up with a more generic solution. Besides, I wanted some nice HTML parsing components to include in Desaware's new ActiveX Gallimaufry product. They turned out to be very useful for the StockQuoting component and are thus included here.
The first issue that needed to be resolved was how to store the page. One possibility would be to keep it as a string, perhaps as an HTML Page object, and have methods that let you extract information from the page. The other approach would be to parse the page into multiple objects, with each object representing a single tag or content string. This latter approach is more flexible because once you break a page into its individual elements it becomes easy to add or rearrange those elements. This is ideal when it comes to creating server scripts. It also makes the searching process relatively fast. The disadvantage is that allocating a new object for each element on the page is relatively inefficient.
The implementation shown here uses the latter approach. The page is parsed into its individual elements, each of which is stored in an object called a dwHTMLelement. This object is shown in Listing 15.4.
Listing 15.4: The dwHTMLelement Class
' HTML element
Desaware ActiveX Gallimaufry
' Copyright (c) 1997 by Desaware Inc. All Rights Reserved
Option Explicit
Private intTag As String
Private intContents As String
Private separator As String
' Tag. Empty string for text
Public Function Tag() As String
Tag = intTag
End Function
' Contents of tag element or text (if no tag)
Public Function Contents() As String
Contents = intContents
End Function
' Loads the next tag or string element,
' Returns the balance of the string
Public Function LoadFromString(inputstring As String) As String
Dim Bracket1Pos As Long
Dim Bracket2pos As Long
Dim holdstring As String
Dim spacepos As Long
Dim returnstring As String
Bracket1Pos = InStr(inputstring, "<")
Bracket2pos = InStr(inputstring, ">")
If Bracket1Pos > 1 Then
' Everything up to the first bracket is content for
' this object
holdstring = Left$(inputstring, Bracket1Pos - 1)
returnstring = Mid$(inputstring, Bracket1Pos)
Else
If Bracket1Pos = 0 Then
' No tag present. The entire input string is content
' for this object.
holdstring = inputstring
Else
' It's the start of a tag
If Bracket2pos = 0 Then ' No right bracket!
' This should never happen on a valid page
' Just treat it as a string
returnstring = inputstring
Else
' Retrieve the entire tag for this object
holdstring = LTrim$(Mid$(inputstring, 2, Bracket2pos - 2))
If Bracket2pos < Len(inputstring) Then
returnstring = Mid$(inputstring, Bracket2pos + 1)
End If
End If
End If
End If
If holdstring <> "" Then ' Separate out the tag
If Bracket1Pos <> 1 Then ' No tag - store the contents only
intContents = holdstring
Else
' It's a tag. Find the first delimiter character
spacepos = StringSpan(holdstring, separator$)
If spacepos <= 1 Then
' No delimiters indicates a tag with no parameters
intTag = holdstring
Else
' Place the tag in the intTag member,
' and the parameters in the intContents member
intTag = Left$(holdstring, spacepos - 1)
If spacepos < Len(holdstring) Then
intContents = Mid$(holdstring, spacepos + 1)
End If
End If
End If
End If
' Trim on left
spacepos = StringSpan2(returnstring, separator)
If spacepos = 1 Then
LoadFromString = returnstring
Else
If spacepos > 0 Then
LoadFromString = Mid$(returnstring, spacepos)
End If
End If
End Function
Private Sub Class_Initialize()
' Initialize the separator string
separator = " " & vbCrLf & vbTab
End Sub
Each object has two important items of data. The tag data contains the type of the tag if the object represents a tag. The contents data contains the text data either from non-tag elements or from any parameters to the tag for tag elements. Both of these items are exposed through functions.
The object is loaded via the LoadFromString function, which takes HTML code as a parameter. This method loads the object from the first element in the string. It then returns the input string with the first element stripped off. You will soon see how this can be used to quickly parse an entire page. The object uses two string utilities that are defined in a separate utility module shown in Listing 15.5.
Listing 15.5: String Functions in Module strFuncs.bas
' String functions
' Desaware ActiveX Gallimaufry
' Copyright (c) 1997 by Desaware Inc. All Rights Reserved
Option Explicit
' Search string sourcestring for first occurrence of any character in _
searchchars
Public Function StringSpan(sourcestring As String, searchchars As _
String) As Long
Dim x&
Dim strlen&
Dim foundpos&
For x = 1 To Len(sourcestring)
If InStr(searchchars, Mid$(sourcestring, x, 1)) > 0 Then
StringSpan = x
Exit Function
End If
Next
End Function
' Search sourcestring for first character not found in searchchars
' Return 0 if entire string is in searchchars
Public Function StringSpan2(sourcestring As String, searchchars As _
String) As Long
Dim x&
Dim strlen&
Dim foundpos&
For x = 1 To Len(sourcestring)
If InStr(searchchars, Mid$(sourcestring, x, 1)) = 0 Then
StringSpan2 = x
Exit Function
End If
Next
End Function
' Converts occurrences of HTML literal characters to real characters
Public Function ConvertHtmlLiterals(strInput As String) As String
Dim amppos&
Dim semipos&
Dim lit$
Dim res$
Dim charval As Integer
amppos = InStr(strInput, "&")
If amppos = 0 Then
' No literals, just copy
ConvertHtmlLiterals = strInput
Exit Function
End If
semipos = InStr(strInput, ";")
If semipos = 0 Or semipos <= amppos + 1 Then
' No HTML literal string, just copy
ConvertHtmlLiterals = strInput
Exit Function
End If
' Get the string
lit$ = Mid$(strInput, amppos + 1, semipos - amppos - 1)
If Left$(lit$, 1) = "#" Then
' It's a numeric literal
charval = Val(Mid$(lit$, 2))
Else
Select Case LCase$(lit$)
Case "lt"
charval = 60
Case "gt"
charval = 62
Case "amp"
charval = 38
Case "quot"
charval = 34
Case "emdash"
charval = 151
Case "copy"
charval = 169
Case "reg"
charval = 174
Case Else
charval = 0
End Select
End If
' Yank out the unknown symbol
If amppos > 1 Then
res = Left$(strInput, amppos - 1)
End If
If charval <> 0 Then
res = res & Chr$(charval)
End If
If semipos < Len(strInput) Then
res = res & Mid$(strInput, semipos + 1)
End If
' Why recursion? There may be more than one literal.
ConvertHtmlLiterals = ConvertHtmlLiterals(res)
End Function
' Strip from the first line feed
Public Function StripLinefeeds(line$) As String
Dim x%
x% = InStr(line$, Chr$(10))
If x = 0 Then StripLinefeeds = line Else StripLinefeeds = _
Left$(line$, x - 1)
End FunctionThe StringSpan function searches for the first occurrence of any character in a string that matches a character in a search string. The StringSpan2 function performs the opposite task, finding the first character in a string that does not exist in a search string. These are used to find separators between elements.
The strFuncs module also contains a function ConvertHtmlLiterals. You see, if HTML uses certain symbols to control the linking and formatting of a page, it obviously has to have a way to differentiate between those symbols as control characters and where they occur in text. For example: What if you wanted to include the line <center> in the text of a page? The browser would interpret this as a center tag. HTML thus defines a way to represent special characters. It uses an ampersand followed by an ASCII code or text code, followed by a semicolon. Thus, to include <center> in the text itself you would use:
<center>
The ConvertHtmlLiterals function scans a string and converts any HTML special codes into the actual characters so it can be easily used in your program. The StripLinefeeds function returns the first part of a string up to the first linefeed character that it finds. This is used later when extracting information from the page.
Collecting HTML Elements
Once you retrieve a stock quote HTML page, two tasks need to be performed. First, you need to parse it into a collection of dwHTMLelement objects. Next, you need to scan through that page to retrieve the quote information.
Because this collection of elements is likely to be used not only by the StockQuote object, but by other components as well, it seemed a good candidate for a custom collection. Using a custom collection provides two additional advantages beyond the obvious safety issues. It allows us to use a more efficient array-based approach to store the object references, and it provides an ideal location for some search utilities that are specific to dwHTMLelement objects.
Listing 15.6 shows the collection-oriented methods and properties for this class. The array-based technique shown here is virtually identical to that shown in Chapter 12. The most interesting function here is the LoadFromString function, which parses an entire HTML page and loads the collection with newly created dwHTMLelement objects from the results.
Listing 15.6: Collection Methods and Properties for the dwHTMLcollection Class
' HTML element collection
' Desaware ActiveX Gallimaufry
' Copyright (c) 1997 by Desaware Inc. All Rights Reserved
Option Explicit
'local variable to hold collection
Private mCol() As dwHTMLelement
Private mColUsed As Long ' Number of elements used
Private mColSize As Long ' Number of elements total
Private Const GRANULARITY = 5
Public Function Append(objNewMember As dwHTMLelement)
If mColSize = mColUsed Then
' Need to increase the array size
mColSize = mColSize + GRANULARITY
ReDim Preserve mCol(mColSize)
End If
mColUsed = mColUsed + 1
Set mCol(mColUsed) = objNewMember
End Function
' Retrieve the number of objects in the collection
Public Property Get Count() As Long
Count = mColUsed
End Property
Public Property Get item(vntIndex As Long) As dwHTMLelement
If vntIndex < 1 Or vntIndex > mColUsed Then
RaiseError 9 ' Subscript error
End If
Set item = mCol(vntIndex)
End Property
' Remove the specified item
Public Sub Remove(vntIndex As Variant)
Dim ctr&
If vntIndex < 1 Or vntIndex > mColUsed Then
RaiseError 9 ' Subscript error
End If
' Shift contents of array
For ctr = vntIndex To mColUsed - 1
Set mCol(ctr) = mCol(ctr + 1)
Next ctr
Set mCol(mColUsed) = Nothing
mColUsed = mColUsed - 1
If mColSize - mColUsed > GRANULARITY * 2 Then
mColSize = mColSize - GRANULARITY
ReDim Preserve mCol(mColSize)
End If
End Sub
Private Sub Class_Initialize()
' Dimension space for first element
ReDim mCol(GRANULARITY)
mColSize = GRANULARITY
End Sub
Private Sub Class_Terminate()
' mCol array objects will terminate when it goes out of scope here.
End Sub
' Parse an entire page into a collection of dwHTMLelements
Public Function LoadFromString(ByVal inputstring As String)
Dim CurrentElement As dwHTMLelement
Do
Set CurrentElement = New dwHTMLelement
inputstring = CurrentElement.LoadFromString(inputstring)
Append CurrentElement
Loop While Len(inputstring) > 0
End Function
Listing 15.7 shows the searching extensions added to the collection to help find specific content on the page.
Listing 15.7: Search Functions for the dwHTMLcollection Object
' Find an element that has the specified tag, content pair
' Empty content string matches all
' Case sensitive defaults to True
' Returns 0 if nothing found
Public Function Find(FirstElement As Long, ByVal Tag As String, Optional ByVal_
Contents As String, Optional CaseSensitive = True) As Long
Dim LastElement&
Dim CurElement&
Dim thtml As dwHTMLelement
Dim bFoundTag As Boolean
Dim bFoundContents As Boolean
LastElement = Count()
' Don't bother if already past the limit
If FirstElement > Count Then Exit Function
' Compare upper case if case insensitive
If Not CaseSensitive Then
Tag = UCase$(Tag)
Contents = UCase$(Contents)
End If
For CurElement = FirstElement To LastElement
Set thtml = mCol(CurElement)
' First check tag
If Tag <> "" Then
If Not CaseSensitive Then
If Tag = UCase$(thtml.Tag) Then
bFoundTag = True
End If
Else
If Tag = thtml.Tag Then
bFoundTag = True
End If
End If
Else
bFoundTag = True
End If
' Now check contents
If Contents <> "" Then
If Not CaseSensitive Then
If Contents = StripLinefeeds(UCase$(thtml.Contents)) Then
bFoundContents = True
End If
Else
If Contents = StripLinefeeds(thtml.Contents) Then
bFoundContents = True
End If
End If
Else
bFoundContents = True
End If
' Match both is a hit
If bFoundTag And bFoundContents Then
Find = CurElement
Exit Function
End If
Next
End Function
' Searches for a sequence of tags starting with element FirstElement.
' CaseSensitive determines if the search is case sensitive
' Then follows a list of tags to find. Tags must appear in the _
specified order
Public Function FindTagSequence(FirstElement As Long, CaseSensitive As _
Boolean, ParamArray TagSequence() As Variant) As Long
Dim CurrentBase As Long
Dim LastElement As Long
Dim CurrentParam As Long
Dim FirstParam As Long
Dim LastParam As Long
Dim bCompareFailed As Boolean
' Expected and current position of tag
Dim ExpectedPosition As Long
Dim CurrentPosition As Long
LastElement = Count()
CurrentBase = FirstElement
LastParam = UBound(TagSequence)
FirstParam = LBound(TagSequence)
Do
bCompareFailed = False
' Try first match
CurrentBase = Find(CurrentBase, TagSequence(FirstParam), , _
CaseSensitive)
' If no match, exit now
If CurrentBase = 0 Then Exit Function
' Now try the other parameters
ExpectedPosition = CurrentBase + 1
For CurrentParam = FirstParam + 1 To LastParam
CurrentPosition = Find(ExpectedPosition, _
TagSequence(CurrentParam), , CaseSensitive)
' If it's not the correct position, exit right away
If ExpectedPosition <> CurrentPosition Then
bCompareFailed = True
Exit For
End If
' Increment the expected value
ExpectedPosition = ExpectedPosition + 1
Next CurrentParam
If Not bCompareFailed Then
' Compare succeeded on all tags!
FindTagSequence = CurrentBase
Exit Function
End If
CurrentBase = CurrentBase + 1
Loop While CurrentBase <= LastElement
End Function
' Find next element that has no tag
' Stops search at closetag if present
Public Function FindNextNonTag(Optional FirstLoc As Long = 1, Optional _
CloseTag As String) As Long
Dim LastElement&
Dim CurElement&
Dim thtml As dwHTMLelement
LastElement = Count()
For CurElement = FirstLoc To LastElement
Set thtml = mCol(CurElement)
If thtml.Tag = "" Then
FindNextNonTag = CurElement
Exit Function
Else
If thtml.Tag = CloseTag Then Exit For
End If
Next
End Function
' FindNextContent starts at FirstLoc,
' Looks for string "FirstContent" in a content field using _
CaseSensitive
' Then looks for the next non-tag field and returns it
' Updates the FirstLoc parameter to the location of the content tag _
returned
' Returns empty string on failure
' This function is useful for finding content pairs
Public Function FindNextContent(FirstLoc As Long, FirstContent As _
String, Optional CaseSensitive As Boolean = True) As String
Dim HtmlFoundIdx&
HtmlFoundIdx = FirstLoc
HtmlFoundIdx = Find(HtmlFoundIdx, "", FirstContent, CaseSensitive)
If HtmlFoundIdx > 0 Then HtmlFoundIdx = FindNextNonTag(HtmlFoundIdx _
+ 1)
If HtmlFoundIdx > 0 Then
FindNextContent = mCol(HtmlFoundIdx).Contents
FirstLoc = HtmlFoundIdx
End If
End Function
' AppendThroughTag starts at FirstLoc,
' Looks for string "FirstContent" in a content field
' Then appends all non-tag fields through the specified closing tag
' Updates the FirstLoc parameter to the location of the content tag _
returned
' Returns empty string on failure
' This function is useful for combining content fields that are _
separated by formatting tags.
Public Function AppendThroughTag(FirstLoc As Long, FirstContent As _
String, ByVal CloseTag As String) As String
Dim HtmlFoundIdx&
Dim BuildString$
HtmlFoundIdx = FirstLoc
CloseTag = UCase$(CloseTag)
If FirstContent <> "" Then HtmlFoundIdx = Find(HtmlFoundIdx, "", _
FirstContent)
If HtmlFoundIdx > 0 Then HtmlFoundIdx = FindNextNonTag(HtmlFoundIdx _
+ 1, CloseTag)
If HtmlFoundIdx > 0 Then
Do While HtmlFoundIdx <= Me.Count
If UCase$(mCol(HtmlFoundIdx).Tag) = CloseTag Then Exit Do
If mCol(HtmlFoundIdx).Tag = "" Then
BuildString = BuildString & _
StripLinefeeds(mCol(HtmlFoundIdx).Contents)
End If
HtmlFoundIdx = HtmlFoundIdx + 1
Loop
FirstLoc = HtmlFoundIdx
End If
AppendThroughTag = BuildString
End Function
' Raises an internal error
Private Sub RaiseError(ByVal errnum&)
Dim ErrNumToUse&
If errnum >= 1000 Then
' Custom error
Err.Raise vbObjectError + errnum, "dwHTMLcollection", _
GetErrorString(errnum), App.HelpFile, errnum + HelpBaseOffset
Else
' Raise VB error
Err.Raise errnum, "dwHTMLcollection", GetErrorString(errnum)
End If
End Sub
In this listing, the following functions are implemented.
The Find function searches for a specific element by both tag and content. It allows you to specify whether the search should be case-sensitive or not. If the tag is the empty string, the function only searches for the requested contents. If the contents is empty or missing, the function only searches for the specified tag. If both are specified, both must match. The function starts searching from a location that you specify and returns the location of the first match, or zero if no match is found.
The FindTagSequence function searches for a specified sequence of tag elements. We're going to need to find a way to uniquely identify the parts of the HTML page we are interested in. Since page formats are fairly consistent, a series of tags can be an excellent way to narrow down the search area. This function demonstrates a good use for parameter arrays, since they allow a single function to work with as many or as few tags as you wish.
The FindNextNonTag function is useful once you have found the series of tags that mark your desired location on the page. This function skips past any remaining tags in the sequence to return the location of the next non-tag element on the page. It also lets you specify a closing tag that will stop the search. This is useful for cases where the item you are searching for is blank.
The FindNextContent function is very useful for handling HTML text that looks like this:
<td width=130>Today's open</td><td>155 1/8</td>
The description for the field is a content element that is separated by one or more tags from the content element that you really want. The FindNextContent function can take the string "Today's open" as a parameter, find the element in the HTML string, skip past any tag elements to the next content element, and return the contents of that element, all in one operation. This is the function we will use most often to extract quote information from the page.
The AppendThroughTag function is useful for handling HTML code that looks like this:
<TH ALIGN=right>Day Low:</TH><TD>94 <SUP>5</SUP>/<SUB>8</SUB></TD></TR>
It searches for a specified content tag, then appends all of the content tags that follow up until a closing tag. In this case you could specify the first tag as Day Low: and the closing tag as /TD and retrieve the string "94 5/8".
The class also includes a centralized error handling function as shown. The INetErrors module (not shown here) contains the error constants for the component and the GetErrorString function.
The StockQuote Object, At Last
Listing 15.8 shows the actual StockQuote object. Most of the listing will be fairly clear, given your level of knowledge at this time. There are a number of private variables containing the quote information. There is the m_Notify variable, which holds the Callback object. The component uses a public enumeration to make it easy for users to interpret the value of the State function. Read-only properties are used to retrieve the quote values.
Listing 15.8: Listing of the StockQuote Object (dwQuote.cls)
' HTML tag
' Desaware ActiveX Library
' Copyright (c) 1997 by Desaware Inc. All Rights Reserved
Option Explicit
' The symbol is set by the GetQuote function
Private m_Symbol As String
' These will be loaded from the web page
Private m_CompanyName As String
Private m_LastPrice As String
Private m_PriorClose As String
Private m_Change As String
Private m_High As String
Private m_Low As String
' Time of last quote
Private m_QuoteTime As String
' Object to notify when quote arrives
' Object must have function:
' Sub QuoteUpdate (QuoteInfo As StockQuote)
' We use notification instead of events because
' an app will typically use many of these objects.
Private m_Notify As Object
' 0 for idle
' 1 for busy
' 2 for error on latest quote
Private m_State As Integer
Public Enum QuoteState
sqIdle = 0
sqBusy = 1
sqError = 2
End Enum
' Retrieve the state of this object
' 0 - idle
' 1 - Busy
' 2 - Error on last operation
Public Property Get State() As QuoteState
State = m_State
End Property
' Symbol
Public Property Get symbol() As String
symbol = m_Symbol
End Property
' Properties to retrieve stock info
Public Property Get CompanyName() As String
CompanyName = m_CompanyName
End Property
Public Property Get LastPrice() As String
LastPrice = m_LastPrice
End Property
Public Property Get PriorClose() As String
PriorClose = m_PriorClose
End Property
Public Property Get Change() As String
Change = m_Change
End Property
Public Property Get QuoteTime() As String
QuoteTime = m_QuoteTime
End Property
Public Property Get High() As String
High = m_High
End Property
Public Property Get Low() As String
Low = m_Low
End Property
' Prevents notification. Used when you
' want to close your application - it
' forces the Quote object to release the callback
' object that it is holding
Public Sub CancelNotification()
Set m_Notify = Nothing
End Sub
' Start the process of retrieving a quote
Public Sub GetQuote(symbol As String, Optional callback As Object)
If m_State = 1 Then
' Don't try to get a quote when one is in progress
TriggerError 4000
Exit Sub
End If
If Not IsMissing(callback) Then
Set m_Notify = callback
End If
' Set the symbol
m_Symbol = symbol
' Mark it as busy
m_State = 1
' Start the quotation
StartQuote Me
End Sub
' Raise an error
Private Sub TriggerError(errnum As Long)
Err.Raise vbObjectError + errnum, "StockQuote", _
GetErrorString(errnum), App.HelpFile, errnum + HelpBaseOffset
End Sub
' Report the quote back to the notification object
' if one exists
' Remember, this is called on error - callee should
' always check state for an error code
' html is collection of dwHTMLelements
Friend Sub ReportQuote(html As dwHTMLcollection, endState As _
QuoteState)
Dim CallbackObject As Object
' Parse the html page
If Not html Is Nothing Then
ParseHtml html
End If
' Set the current state
m_State = endState
Set CallbackObject = m_Notify
' Always clear the notification - we don't want to
' hold the object
Set m_Notify = Nothing
If Not CallbackObject Is Nothing Then
On Error GoTo NoCallbackName
CallbackObject.QuoteUpdate Me
End If
NoCallbackName:
' If a callback text error occurs, just exit
End Sub
Friend Sub ParseHtml(html As dwHTMLcollection)
Select Case QuoteSource
Case sqschwab
ParseSchwabQuote html
Case sqyahoo
ParseYahooQuote html
End Select
End Sub
Private Sub ParseYahooQuote(html As dwHTMLcollection)
Dim HtmlFoundIdx As Long
Dim IsFund As Boolean
Dim QuoteType$
HtmlFoundIdx = html.FindTagSequence(1, False, "Table")
If HtmlFoundIdx = 0 Then Exit Sub
HtmlFoundIdx = html.FindTagSequence(HtmlFoundIdx, False, "td", _
"strong")
If HtmlFoundIdx = 0 Then Exit Sub
m_CompanyName = ConvertHtmlLiterals(html.item(HtmlFoundIdx + _
2).Contents)
m_QuoteTime = ConvertHtmlLiterals(html.AppendThroughTag(HtmlFoundIdx, _
"Last Trade", "strong"))
If m_QuoteTime = "" Then
m_QuoteTime = _
ConvertHtmlLiterals(html.AppendThroughTag(HtmlFoundIdx, "Net Asset _
Value", "strong"))
If m_QuoteTime <> "" Then IsFund = True
End If
m_LastPrice = html.AppendThroughTag(HtmlFoundIdx, "", "/STRONG")
m_Change = html.AppendThroughTag(HtmlFoundIdx, "Change", "/TD")
m_PriorClose = html.AppendThroughTag(HtmlFoundIdx, "Prev Close", _
"/TD")
' If QuoteType <> "Stock" Then IsFund = True
End Sub
Private Sub ParseSchwabQuote(html As dwHTMLcollection)
Dim HtmlFoundIdx As Long
Dim IsFund As Boolean
Dim QuoteType$
HtmlFoundIdx = html.FindTagSequence(1, False, "/Table", "P")
If HtmlFoundIdx = 0 Then Exit Sub
HtmlFoundIdx = html.FindTagSequence(HtmlFoundIdx, False, "TR", "TH")
m_CompanyName = ConvertHtmlLiterals(html.item(HtmlFoundIdx + _
2).Contents)
QuoteType = html.FindNextContent(HtmlFoundIdx, "Security Type:")
If QuoteType <> "Stock" Then IsFund = True
m_LastPrice = html.AppendThroughTag(HtmlFoundIdx, "Trade:", "/TD")
m_Change = html.AppendThroughTag(HtmlFoundIdx, "Change:", "/TD")
If Not IsFund Then
m_High = html.AppendThroughTag(HtmlFoundIdx, "Day High:", "/TD")
m_Low = html.AppendThroughTag(HtmlFoundIdx, "Day Low:", "/TD")
m_PriorClose = ""
Else
m_High = ""
m_PriorClose = ""
m_Low = ""
End If
'' Retrieve the date
m_QuoteTime = html.FindNextContent(HtmlFoundIdx, "Date:")
m_QuoteTime = m_QuoteTime & " " & html.FindNextContent(HtmlFoundIdx, _
"Time:")
End Sub
Public Function QuoteToCurrency(ByVal quote As String) As Currency
Dim spacepos% ' Location of space
Dim fractionpos% ' Location of fraction
Dim TempResult As Currency
If quote = "" Then Exit Function
quote = Trim$(quote) ' Dump leading & trailing spaces
spacepos = InStr(quote, " ")
If spacepos = 0 Then
QuoteToCurrency = CCur(quote)
Exit Function
End If
' Get the integer value first
TempResult = CCur(Left$(quote, spacepos - 1))
' We know it's not a trailing space because of
' the initial trim operation.
quote = Mid$(quote, spacepos + 1)
' Is there a fractional?
fractionpos = InStr(quote, "/")
If fractionpos <= 1 Or fractionpos = Len(quote) Then
' We don't know how to parse this
QuoteToCurrency = TempResult
Exit Function
End If
On Error GoTo MathError:
TempResult = TempResult + CCur(Left$(quote, fractionpos - 1)) / _
CCur(Mid$(quote, fractionpos + 1))
QuoteToCurrency = TempResult
Exit Function
MathError:
' For now, just return the current result.
QuoteToCurrency = TempResult
End Function
Public Function CurrencyToQuote(ByVal quote As Currency) As String
Dim IntVal As Integer
Dim FracVal As Integer
Dim Denominator As Integer
IntVal = Fix(quote) ' Get integer part
' Get the fractional part
' How many 64's (lowest fraction we're likely to see)
FracVal = CInt(Abs(quote - IntVal) * 64)
' Now we keep dividing while even
Denominator = 64
Do
If (FracVal And 1) Then
' It's odd
Exit Do
End If
FracVal = FracVal \ 2
Denominator = Denominator \ 2
Loop While Denominator > 0
CurrencyToQuote = IntVal & " " & FracVal & "/" & Denominator
End Function
Perhaps the most interesting functions here are the ParseHtml and the functions it calls. These functions first look for the tags that appear before the company name. The company name has to be processed by the ConvertHtmlLiterals function because some companies have special characters in their names (AT&T, for example). The function then calls FindNextContent to extract the various quote information.
As you can see in this implementation, not every service provides all of the information the StockQuote object can use. You can search for other services or call multiple services to obtain as much information as you need.
What would happen if Schwab or Yahoo changed the format of their pages? Unless the format change is major, chances are these are the only functions that would need to be changed. What would happen if Schwab or Yahoo stopped providing stock quote information, and we had to change the server to another site? We would have to add a new parsing function and change the request line in the frmHolder form. That's all.
Clearly the server could easily be modified to handle multiple stock quoting services and even to support alternate services if one is down. Part of the work has already been started; the rest is left as an exercise for the reader.
On Referencing
One subtle aspect of the operation of this server relates to the object referencing. For example: What happens if a client closes down during a request?
Surprisingly enough, this is not a problem. First of all, when a request is in progress, the object holds on to a reference to the Callback object, which prevents the client from closing down in the first place. However, the client can (and should) use the CancelNotification method to cancel a request and shut down. Also, the client does not have to use a callback. It can pass Nothing to the GetQuote function and poll the State property to determine when the request is complete.
So what happens if the client does close down? This eliminates a reference to the StockQuote object. However, if the object has a quote pending, it will not be deleted because it is still referenced by the QuoteEngine's collection. Only after the quote is complete will the object be terminated.
The same care is used to unload the frmHolder form open when no more quotes are pending. If the form was always loaded, the server would never terminate.
The StockMon.vbp Project
The StockMon.vbp project is a very simple project that demonstrates the original task I had in mind: a program that would monitor a selection of stock and periodically notify me if any changes occur. The project is extremely straightforward and can be found in the Chapter 15 samples directory on your CD-ROM.
This concludes the long-promised and often-delayed StockQuote component. As you have seen, it takes advantage of many of the features of ActiveX that were described throughout this part of the book.
But like any ActiveX code component, the StockQuote server operates primarily behind the scenes. It's time to look at a component type that is possibly even more exciting, and certainly more challenging: ActiveX controls.
